AISI/SAE 5160 Carbon Steel Bar

Steel is a versatile material. One steel alloy is AISI 5160, which is an American Society for Testing and Materials (ASTM) designation for spring steel.

Category:

Carbon Steel Bar

Keywords:

WhatsApp: +86-19016358231

Email: sales01@mingbaosteel.com

AISI/SAE 5160 Carbon Steel Bar Description

Steel is a versatile material. One steel alloy is AISI 5160, which is an American Society for Testing and Materials (ASTM) designation for spring steel.

Product Parameters

Product Name	AISI/SAE 5160 Carbon Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

Standard	Grade	C	Si	Mn	Cr	V	P≤	S≤
DIN 17221	60SiCr7	0.57-0.65	1.50-1.80	0.70-1.00	0.20-0.40		0.030	0.030
	55Cr3	0.52-059	≤ 0.40	0.70-1.00	0.70-1.00		0.025	0.025
	60Cr3	0.56-0.64	0.17-0.37	0.70-1.00	0.70-1.00		0.025	0.025
	50CrV4	0.47-0.55	0.15-0.40	0.70-1.00	0.70-1.10	0.10-0.20	0.030	0.030
JIS G4801	SUP6	0.55-0.65	1.50-1.80	0.70-1.00	—		0.035	0.035
	SUP7	0.55-0.65	1.80-2.20	0.70-1.00	—		0.035	0.035
	SUP9	0.52-0.60	0.15-0.35	0.65-0.95	0.65-0.95		0.030	0.030
	SUP9A	0.56-0.64	0.15-0.35	0.70-1.00	0.70-1.00		0.030	0.030
	SUP10	0.47-0.55	0.15-0.35	0.65-0.95	0.80-1.10	0.15-0.25	0.030	0.030
SAE J1268	9260/H	0.55-0.65	0.70-1.20	0.65-1.10	≤0.2		0.040	0.030
	5155	0.50-0.60	0.15-0.35	0.65-1.10	0.60-1.00		0.040	0.030
	5160/H	0.55-0.65	0.15-0.35	0.65-1.10	0.60-1.00		0.040	0.030
	6150	0.47-0.54	0.15-0.35	0.60-1.00	0.75-1.20	≤ 0.15	0.040	0.030

Mechanical Properties

Standard				Heat Treatment			Mechanical Property [≥]
GB	SAE	JIS	DIN	Quenching Temprature°C	Quenchant	Temper Stressing°C	Tensile Strength Rm/[N/mm2]	Yield Strength ReL/[N/mm2]	HBW≤
65Mn	1066	-	-	830	Oil	540	980	785	302
60Si2Mn	9260	SUP6	60Si7	870		480	1275	1180	321
60Si2MnA	9260	SUP7	60Si7	870		440	1570	1375	321
55CrMnA	5155	SUP9	55Cr3	830-860		460-510	1225	1080(Rpo 2)	321
60CrMnA	5160/h	SUP9A	-	830-860		460-520	1225	1080(Rpo 2)	321
50CrVA	6150	SUP10	51CrV4	850		500	1275	1130	321

Scope of Application

5160 steel is an ideal spring steel. Its high strength is often used in applications with small cross-sections under significant stress, such as springs, fasteners, and leaf springs in automotive suspensions.

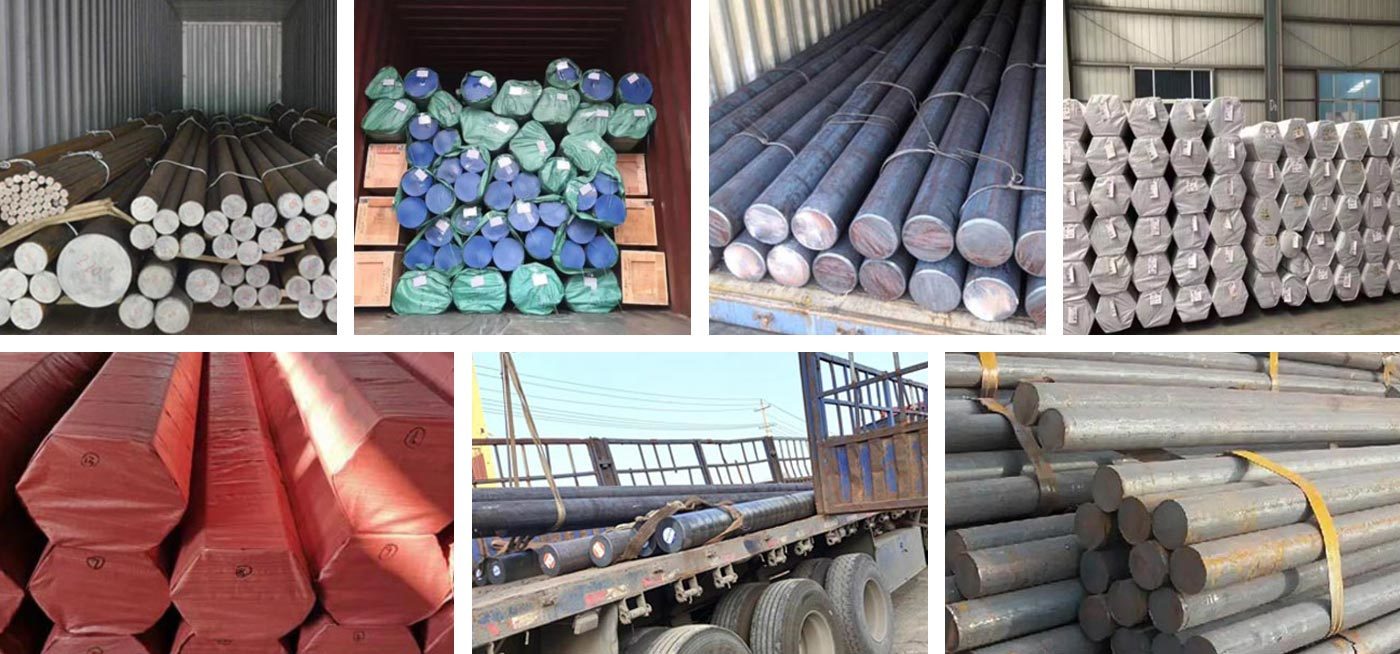

PACKING AND DELIVERY

Packing and delivery

Our company mainly produces stainless steel, galvanized steel, carbon steel, etc., which are suitable for engineering, coal mining, textile, electricity, boiler, machinery and other fields. We adhere to the management policy of "quality first, service first, continuous improvement and innovation, customer satisfaction" and take "zero defects, zero complaints" as the quality goal.

FACTORY APPEARANCE

Shandong Mingbao Metal Materials Co., Ltd. was established in 2015 and is located in Jinan City, Shandong Province. It has a plant area of 20,000 square meters. The annual output is 200,000 tons. We have passed the ISO9001 quality system certification and the EU CE certification. We focus on the production and sales of steel in Shandong area, so we have a high supply capacity.

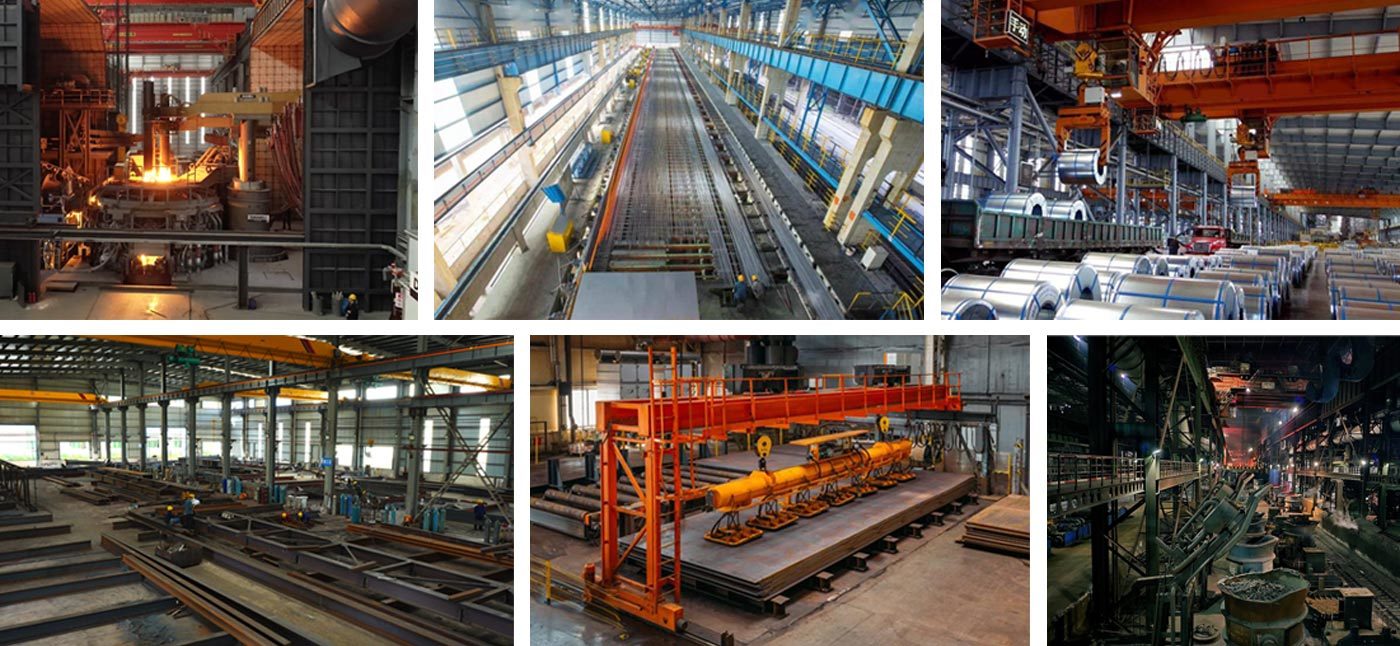

APPLICATION AREAS

It is applicable to engineering, coal mining, textile, electricity, boiler, machinery and other fields. We adhere to the management policy of "quality first, service first, continuous improvement and innovation, customer satisfaction" and take "zero defects, zero complaints" as the quality goal.
